Hy-Series® wastewater treatment plants are intended for cleaning all biologically polluted wastewater from households, recreational facilities, boarding houses, smaller municipalities or small production facilities with biological waste.
SUITABLE FOR
STANDARD DESIGN
CUSTOMER AND AFTERSALES SERVICE
Family houses, holiday homes, small production facilities or businesses with bio-waste
Control unit and inflow chamber, bioreactor, clarifier, air pump, return sludge lift pumps to ensure minimal maintenance in the future
Our experts help you size and install your unit taking into consideration maximum effectiveness with the lowest footprint.
METHOD OF DISPOSAL AND USE OF WASTEWATER
OPTIONAL EQUIPMENT
SPECIAL MATERIAL
Discharge into groundwater or surface water, or reuse of water for irrigation, toilets, etc
Disinfection chambers, filtration systems, remote
monitoring devices.
High strength polypropylene is non-toxic and
provides high chemical resistance; machined
and welded to the strict German welding standards.
PRINCIPLE OF OPERATION OF THE WASTEWATER TREATMENT PLANT
The treatment plant works on the principle of biological wastewater treatment using activated sludge with extended aeration technology. Oxygen, essential for life microorganisms is supplied by a membrane blower, which is located directly in the treatment plant. The blower works in conjuction with a manifold that is used to drive mammoths that pump water between the individual chambers as well as drive several essential functions in the treatment plant.

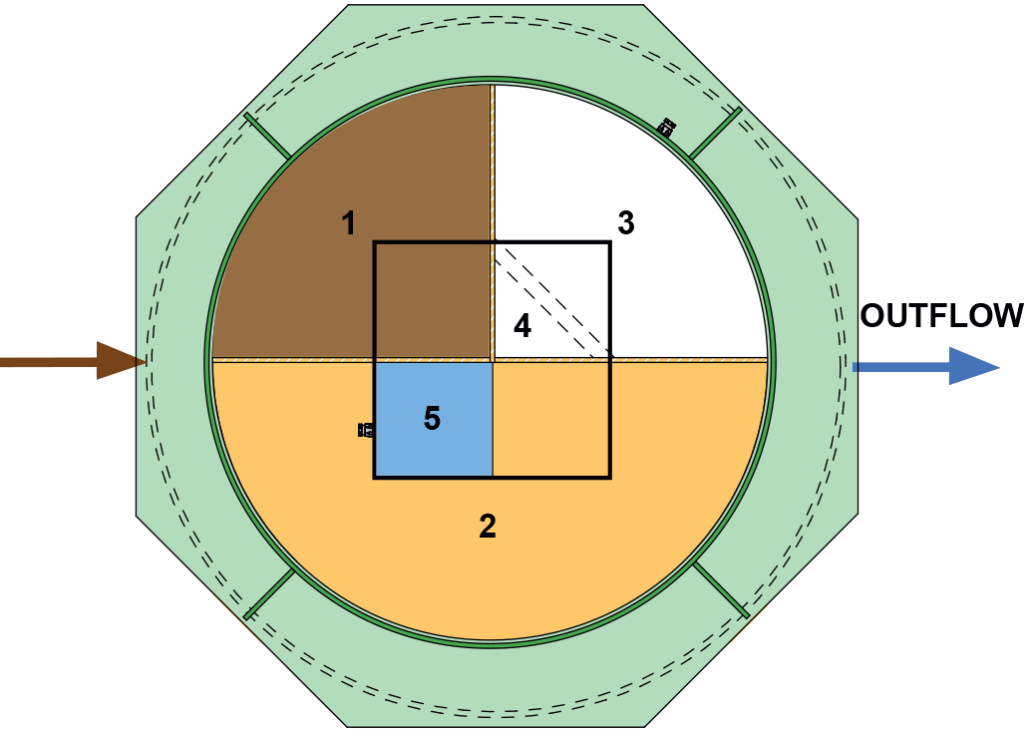

DESCRIPTION OF THE TECHNOLOGY
- Inflow chamber + Bioreactor
- Bioreactor
- Clarifier
- Mammoth Pumps
- Control Box
TECHNOLOGY USED
Biological wastewater treatment using extended aeration activated sludge in suspension.
ADVANTAGES
- Lowest electrical consumption on the market for a biological wastewater treatment plant
- Minimal maintenance required (Once per year or more)
- No moving parts ie less malfunctions
- Modular system : User can add more wastewater treatment plants
or units to accomodate any increase in capacity.
- Odorless operation as well as odorless effluent.
- Compact ONE-TANK WWTP design
- Automatic control of WWTP operation without user intervention.

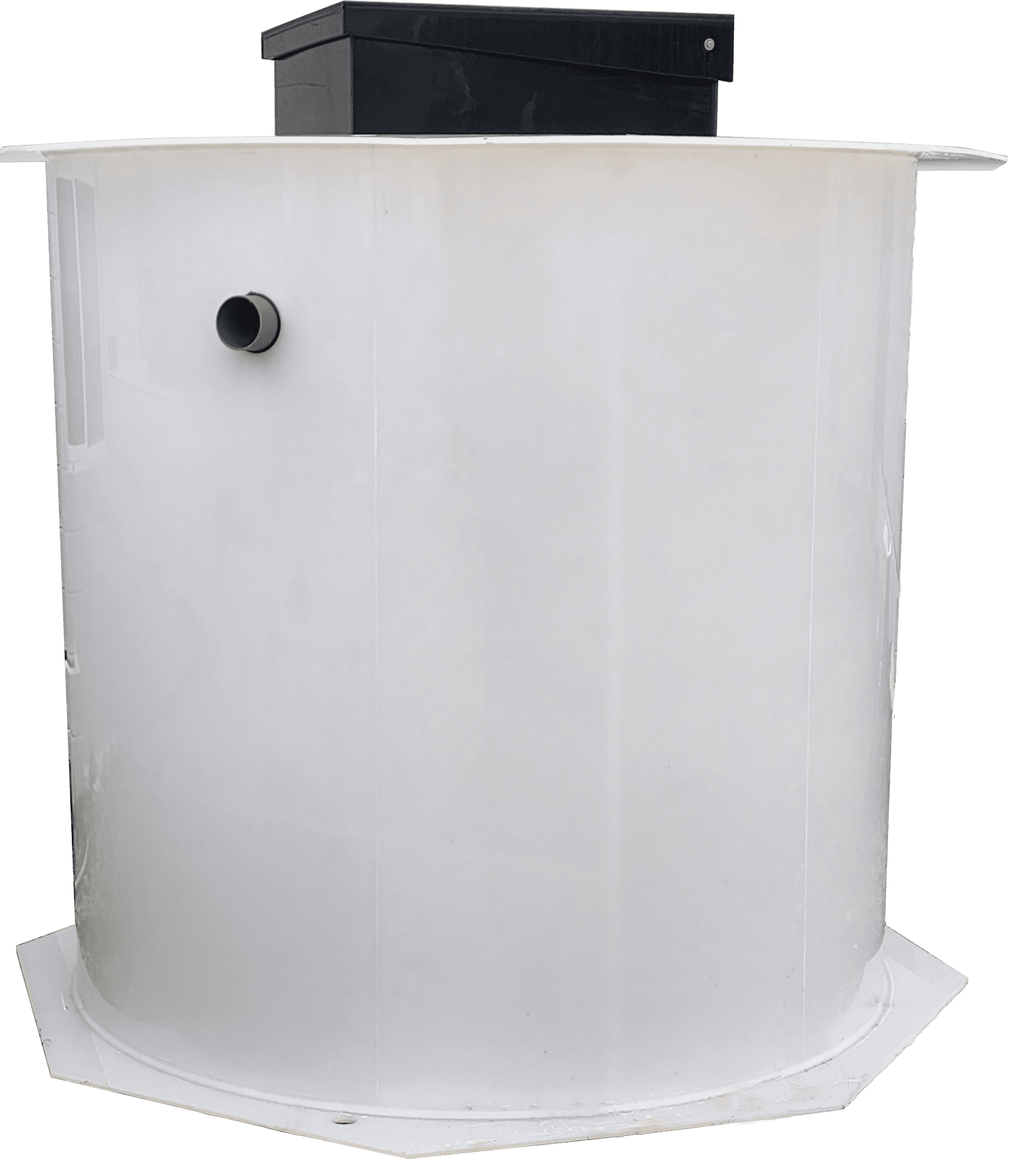

- Stable self-supporting plastic round tank made of polypropylene
